IP NETWORKING FLEXIBILITY AND SCALE ABILITY

The KX-NS1000 fully supports IP, an open protocol for establishing real-time communication. Using IP effectively can result in compelling advantages such as improving user efficiency, and lowering communication costs.

ONE-LOOK NETWORKING

Controlling the Systems at Multiple Offices as a Single System

Panasonic’s One-look Networking is a system where a single KX-NS1000 works and provides PBX features even though two or more KX-NS series units are networked.  It is not necessary to provide additional servers. The system can be expanded easily via a web based maintenance console. One-look Networking provides a maximum of 16 sites, and the large capacity of the KX-NS1000 supports up to 1000 users.

ONE-LOOK NETWORKING SURVIVABILITY

Reliable Backup System to Survive System Failures

With One-look Networking, the system can continue to operate even in the event of a failover due to system trouble with the master KX-NS1000. By specifying a backup master site, the backup master site will act as the master site temporarily to continue communication services when there is trouble with the master site. This enables each site to continue operating independently. IP terminals only can also be registered to another PBX.

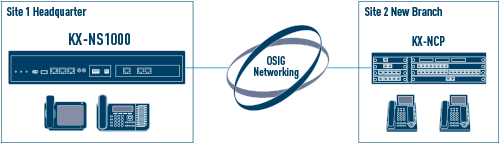

QSIG NETWORKING SUPPORT

Build Systems for Up to 8000 Users

When the KX-NS1000 connects to existing PBXs such as the KX-TDE and KX-NCP via an ISDN private network or VoIP network (H.323), it is possible to flexibly increase capacity and provide QSIG features. QSIG networking is capable of supporting up to 8000 users and 17 or more sites on a network. It is not necessary to renew all PBX systems when the office population increases or a new branch is opened.

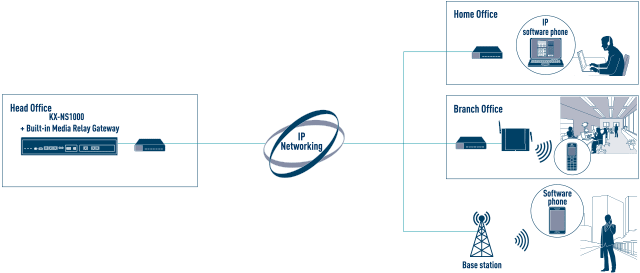

BUILT-IN MEDIA RELAY GATEWAY- REMOTE EXTENSION SETUP

The Built-in Media Relay Gateway (MRG) of the KX-NS1000 enables you to install IP phones in locations distant from the office, such as the homes of teleworkers. By connecting with IP networking, IP phones*1 and DECT wireless systems*2 can be configured remotely and used as KX-NS1000 extensions.

Furthermore, mobile workers using a software phone on a smartphone or PC can also use IP phones as extensions when they are away from the office. *1 KX-NT500 series, KX-UT series, IP software phones, and third party SIP phones are supported. *2 When using the KX-NS0154

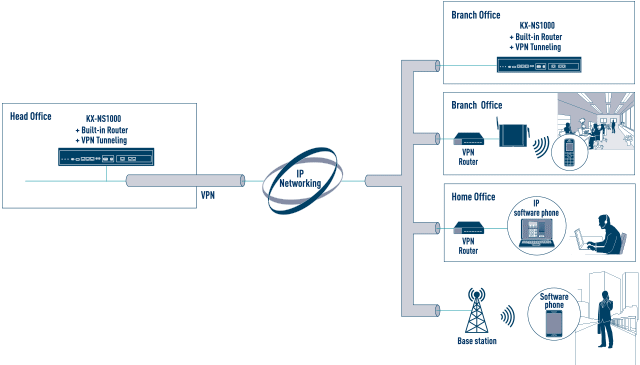

BUILT-IN ROUTER- EASY SETUP TO ESTABLISH VPN TUNNELING

The router function of the KX-NS1000 can be used to support VPN with networks. If One-look Networking is used, settings can be configured for all offices at a single site.

Also, since this can be achieved using activation keys, additional hardware is not required and you can establish secure connections at a low cost, even when communicating using a software phone on a smartphone.
